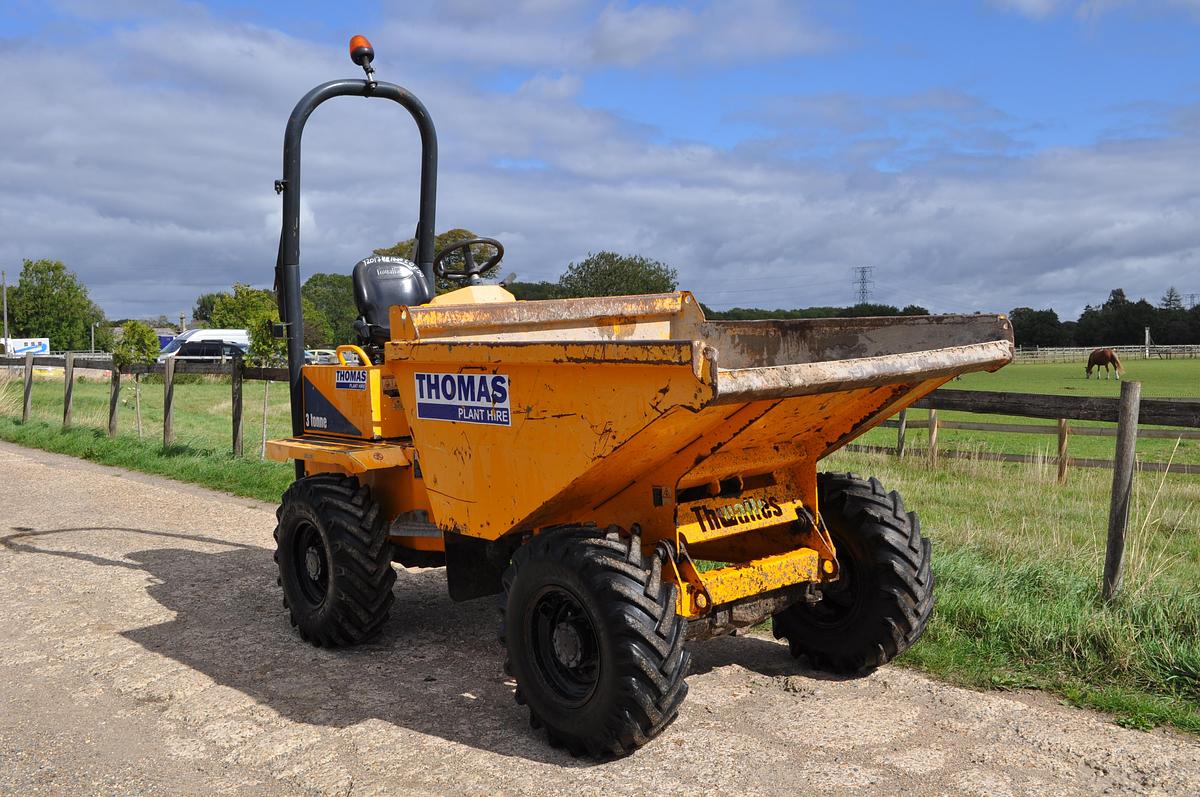

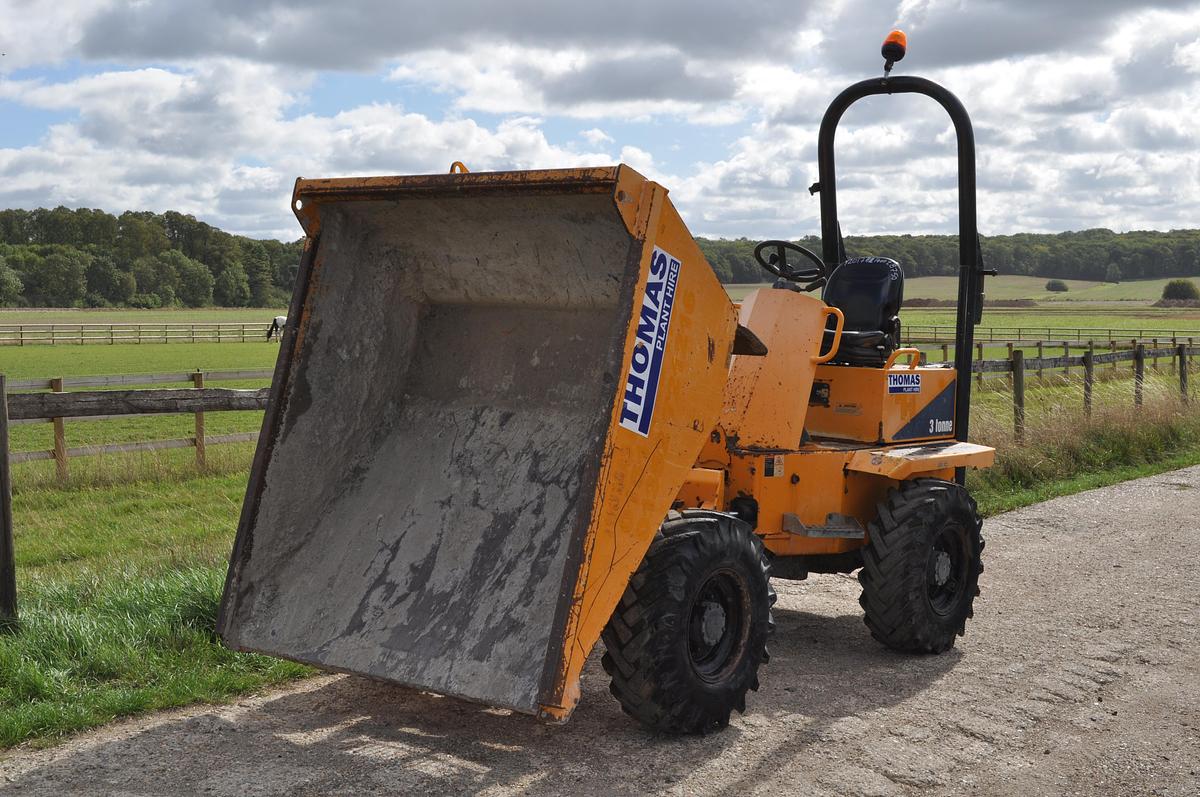

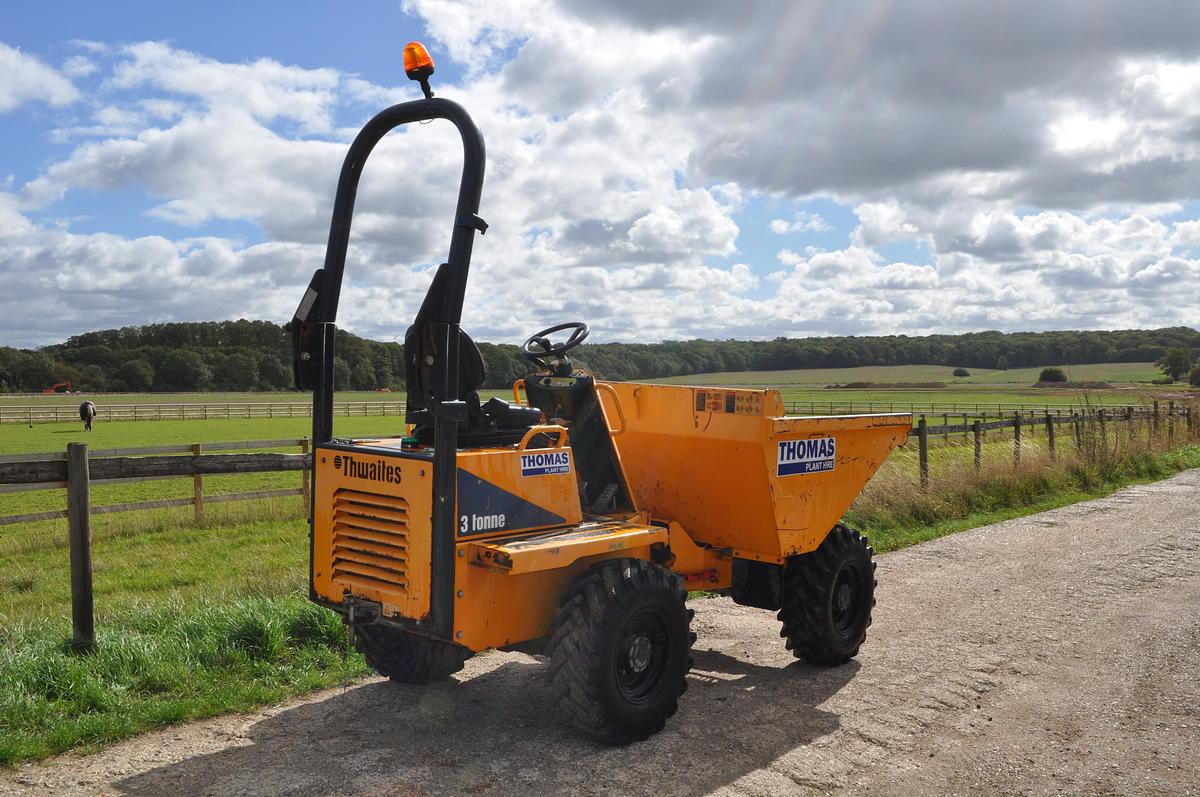

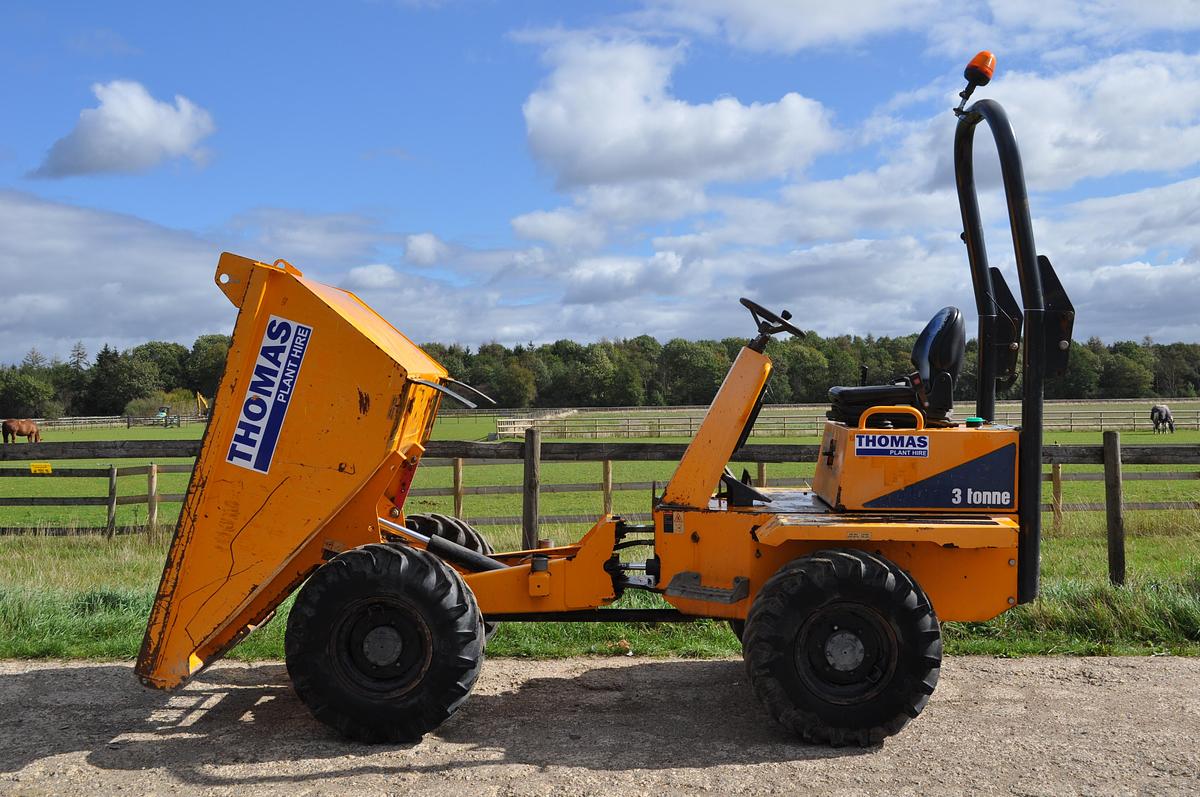

2017 THWAITES MACH581 3T STRAIGHT TIP DUMPER

Dimensions and weight

• Unladen weight: 2,060 kg
• Overall length: 3,939 mm
• Overall width: 1,650 mm
• Overall height (with ROPS): 3,092 mm
• Tyres: 295/80 x 15.3

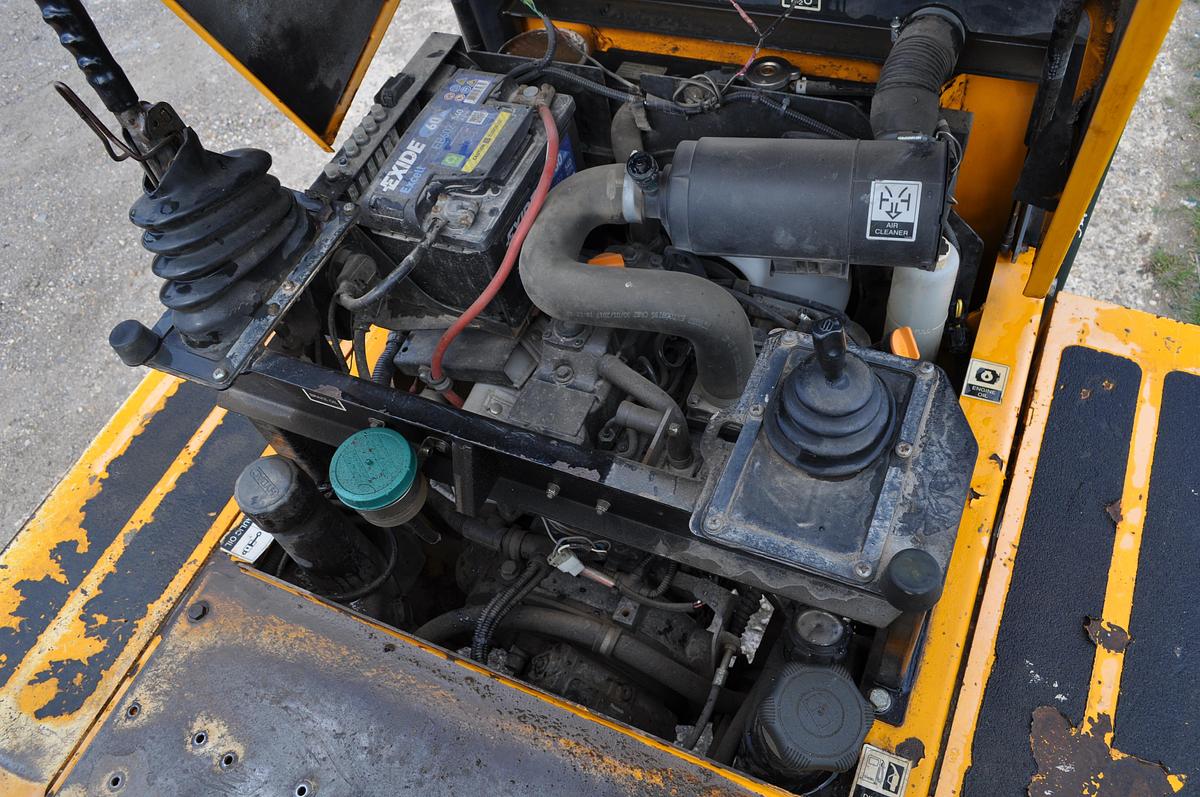

Engine: Yanmar 3TNV88, 3-cylinder, water-cooled, direct-injection diesel

Engine Power: 24.8 kW / 33.2 bhp at 2800 rpm

Max Torque: 111 Nm (82 lbf ft)

Max Safe Load: 3000 kg

• Skip Capacities:Heaped: 1680 litres
• Struck: 1350 litres
• Water: 1060 litres

Transmission: Hydrostatic with high/low range and forward/reverse control

Speeds: 0–8.0 km/h (Low) and 0–21.1 km/h (High)

Brakes: Totally enclosed, multiplate oil-immersed discs on rear axle, effective on all four wheels

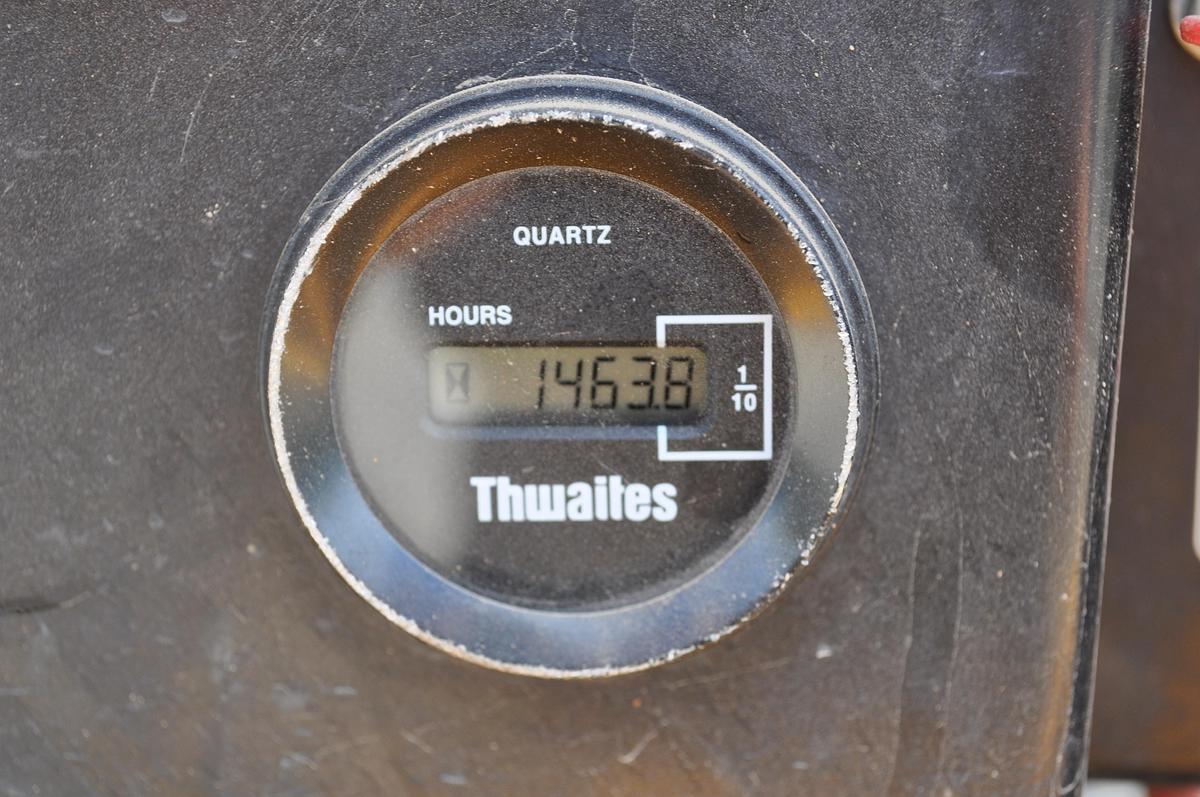

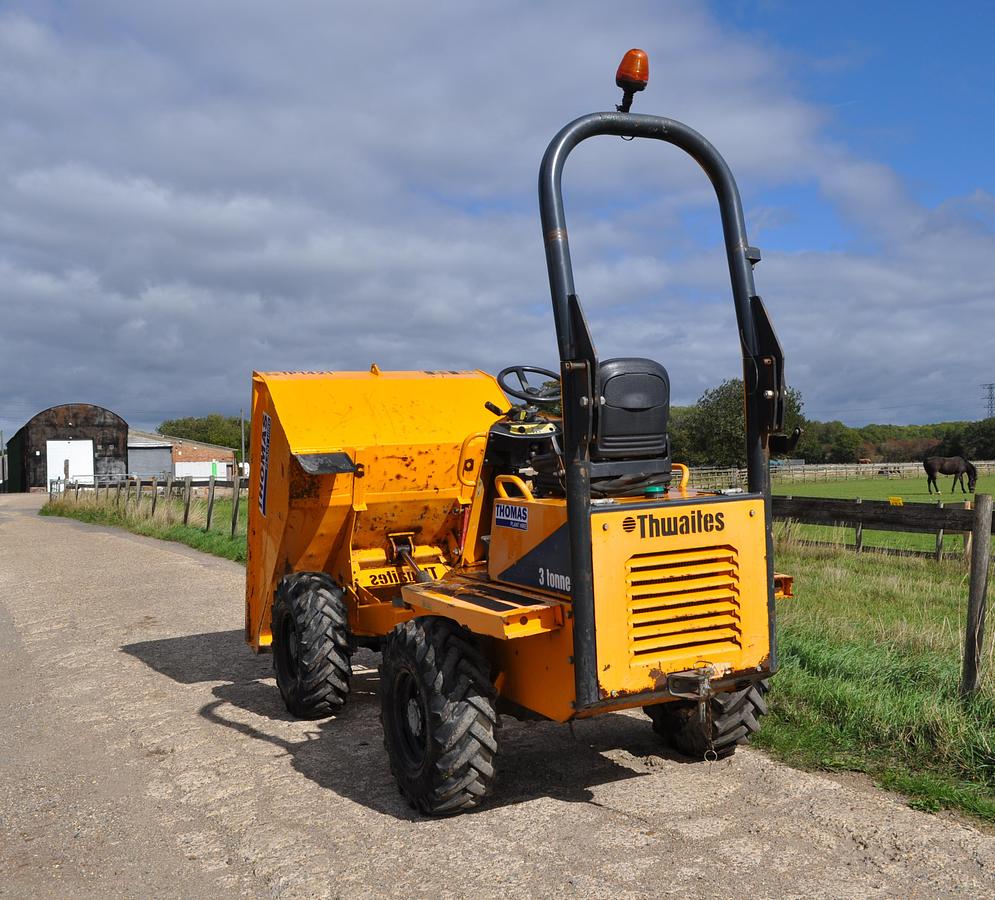

Features: Inching facility, hour meter, battery isolator, cyclonic air cleaner, ROPS (Roll Over Protection System) frame
